Description
SPECIFICATIONS
Alarm Type: ACCESSORIES,Front Side,Rear Side
Brand Name: carsanbo
Certification: CE,FCC,RoHS
Guiding Line: no
High-concerned chemical: None
Length of Video Cable: 6M
Lens Material: Plastic + Glass
Material: Plastic
Origin: Mainland China
Shell Material: Plastic
Wire or Wireless: Wire
Important Information Before Purchase:
1. This 4PIN connector can not works with different factory 4PIN cable or dash camera, since different factory. The definition of pins is different,our camera can works only for monitor with RCA input.
1. This 4PIN connector can not works with different factory 4PIN cable or dash camera, since different factory. The definition of pins is different,our camera can works only for monitor with RCA input.
2. Please confirm your monitor which kind signal support. CVBS monitor only works for CVBS camera, AHD monitor is works for CVBS and AHD. But if AHD monitor, we advice you take AHD version. Our store has both version.

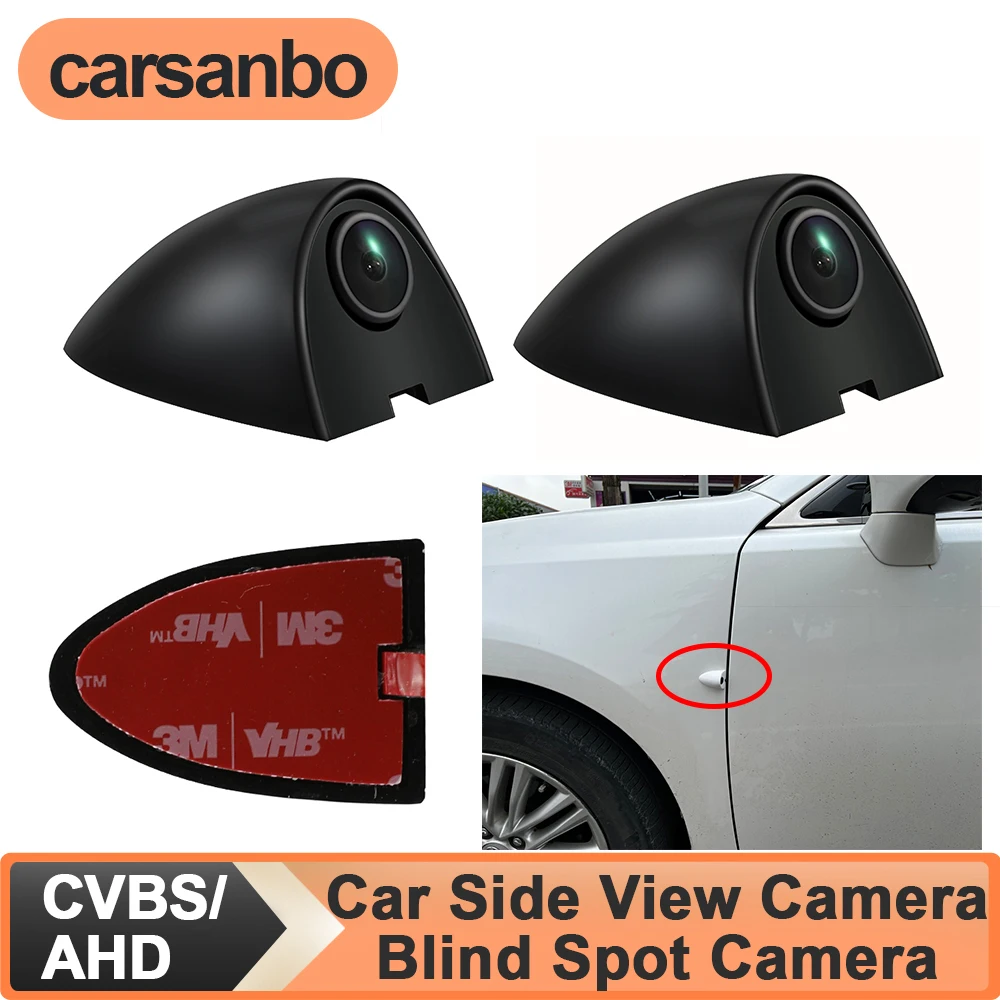

3. The camera needs to be installed on the car as shown in the picture, otherwise the image will rotate 90 degrees.

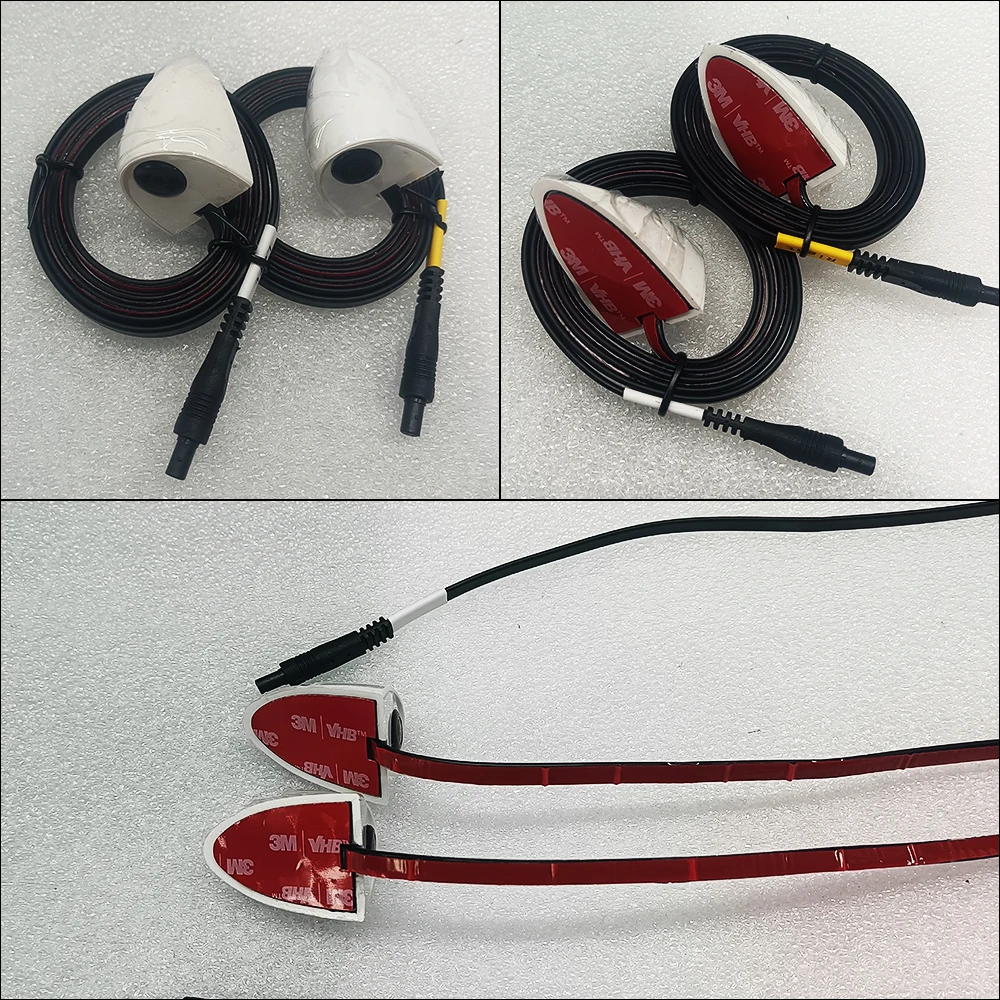

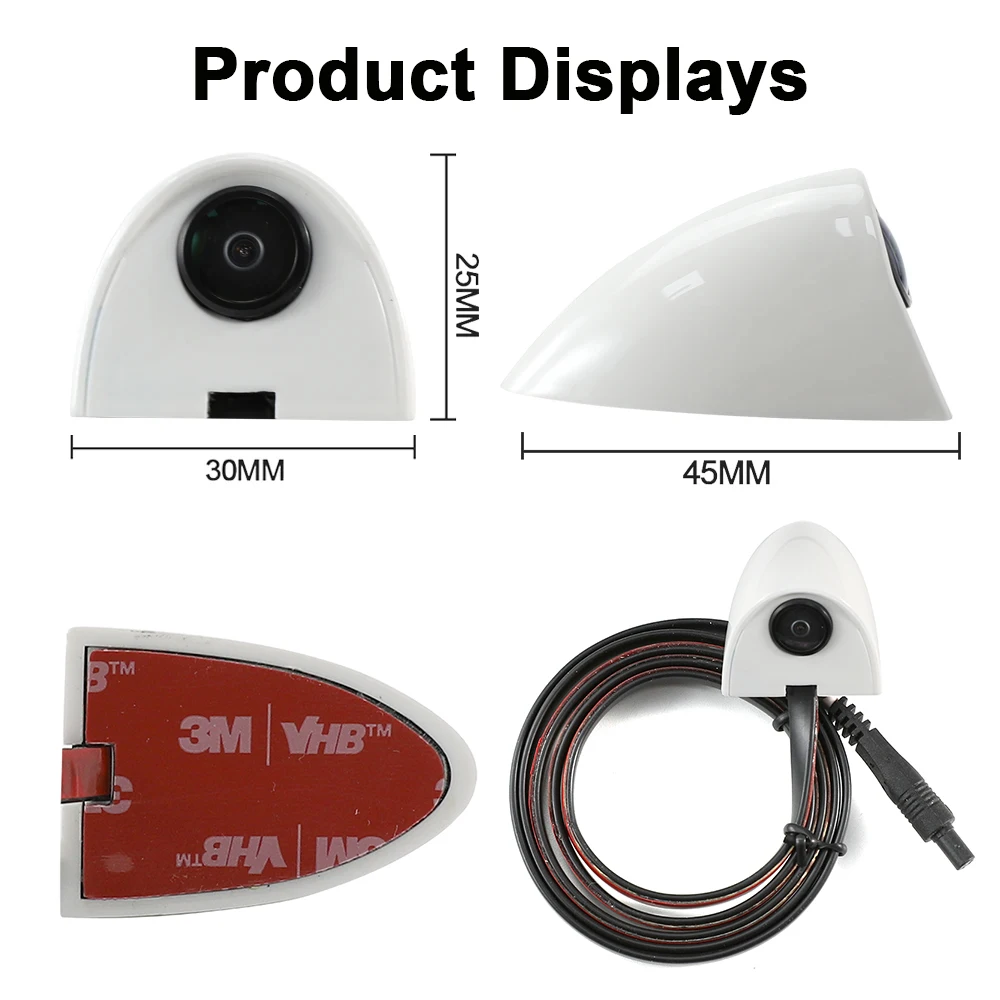

3M Sticker Mount Side view Cameras Set (1pcs left camera and 1pcs right camera)
Special for side of car installation, DIY mounting.
Model: CVBS 480P
1) Image Sensor: 1/4 PC7070
2) TV System: NTSC
3) Effective Pixels: 640*480 for CVBS
4) Horizontal Resolutions: 480 TV lines

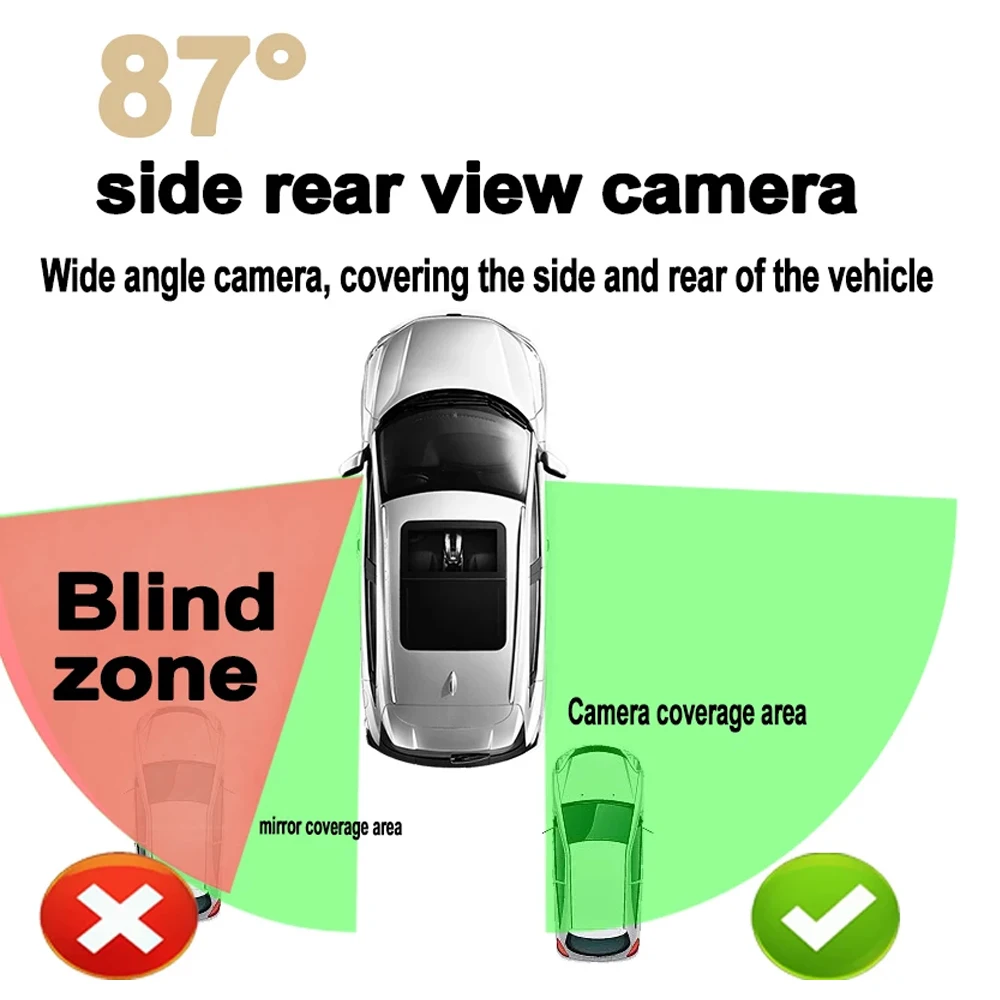

5) horizontal Angle: 80 degree
Model: AHD 720P/1080P
1)Â Image Sensor: AHD ChipsÂ
2) TV System: PAL
3) Effective Pixels: 1280*720Pfor AHD / 1280*1080PÂ for AHD
4) Horizontal Resolutions: 800 TV lines
5) Horizontal Angle: 85 degree
Shared Parameters
1) Sensing Area: 3.8 mm *2.9 mm
2) Shutter Speed: 1-1/12000
3) Gamma No.: 0.45
4) Minimum illumination: 0.01 Lux/F=1.2 (0 Lux with IR on)
5) Video Output: RCA connector, other connector optional
6) 1.0 VP-P,75 OHM
7) Power Consumption: 130mA
8) Power Supply: DC12V
9) Operating Temperature: -20°C – 75°C ,RH 95% MAX
10) Storage Temperature: -40°C – 80°C, RH 95% MAX

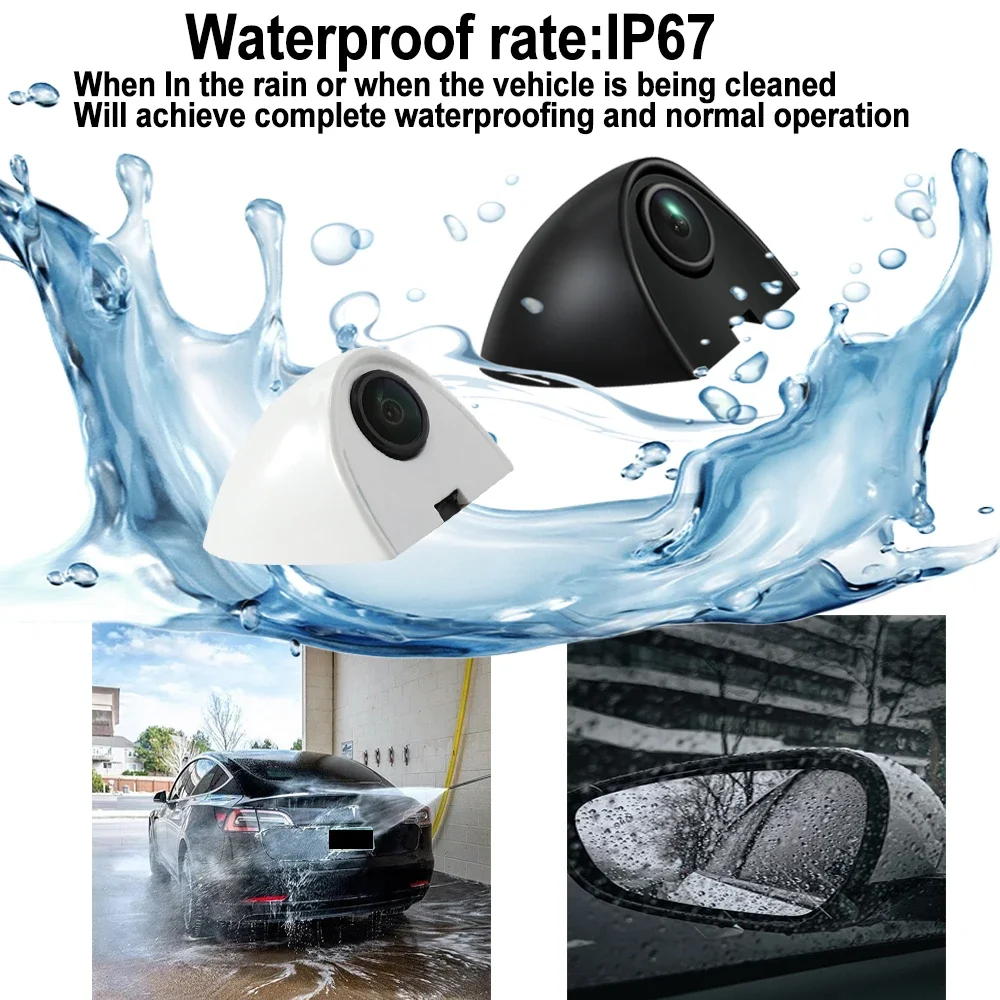

11) Waterproof Rate: IP67
12) Length of Cable:
Special for side of car installation, DIY mounting.
Model: CVBS 480P
1) Image Sensor: 1/4 PC7070
2) TV System: NTSC
3) Effective Pixels: 640*480 for CVBS
4) Horizontal Resolutions: 480 TV lines
5) horizontal Angle: 80 degree
Model: AHD 720P/1080P
1)Â Image Sensor: AHD ChipsÂ
2) TV System: PAL
3) Effective Pixels: 1280*720Pfor AHD / 1280*1080PÂ for AHD
4) Horizontal Resolutions: 800 TV lines
5) Horizontal Angle: 85 degree
Shared Parameters
1) Sensing Area: 3.8 mm *2.9 mm
2) Shutter Speed: 1-1/12000
3) Gamma No.: 0.45
4) Minimum illumination: 0.01 Lux/F=1.2 (0 Lux with IR on)
5) Video Output: RCA connector, other connector optional
6) 1.0 VP-P,75 OHM
7) Power Consumption: 130mA
8) Power Supply: DC12V
9) Operating Temperature: -20°C – 75°C ,RH 95% MAX
10) Storage Temperature: -40°C – 80°C, RH 95% MAX
11) Waterproof Rate: IP67
12) Length of Cable:

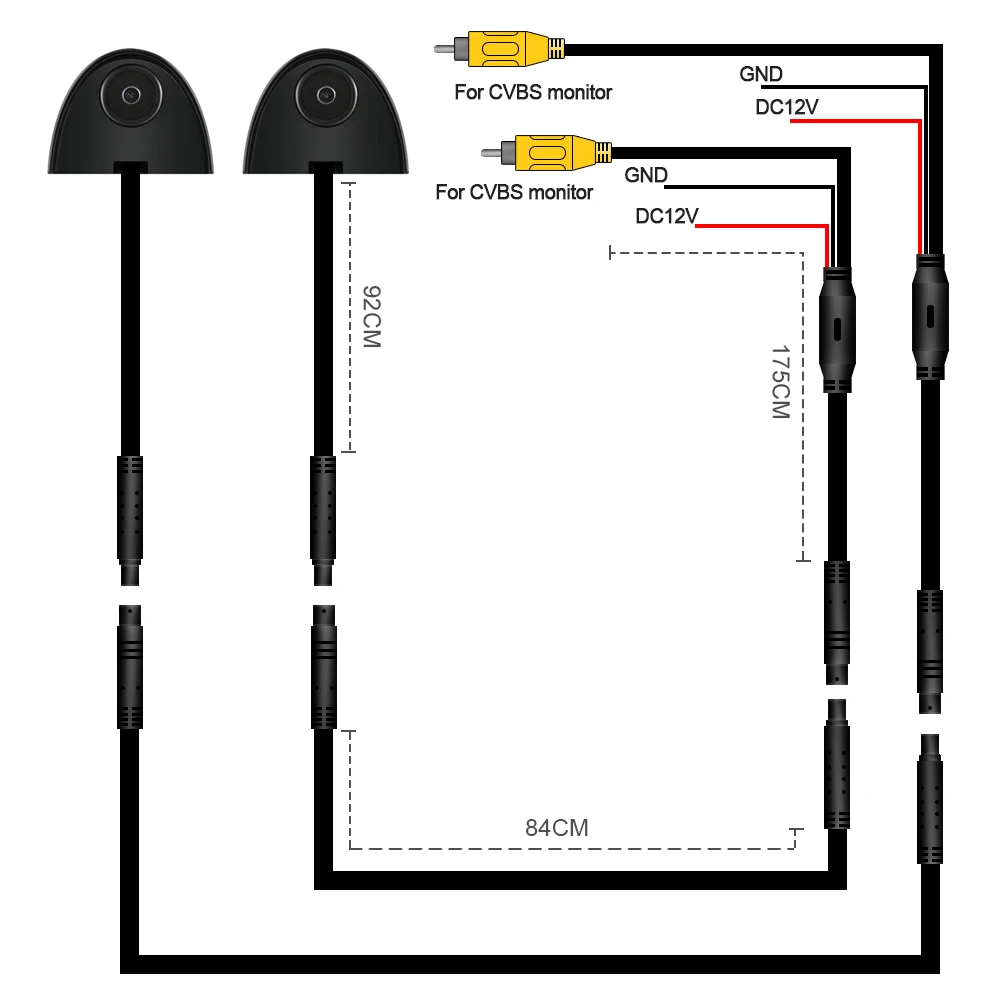

Camera body cable: 92cm ,
Power cable: 175cm
13) Night Vision Color Camera

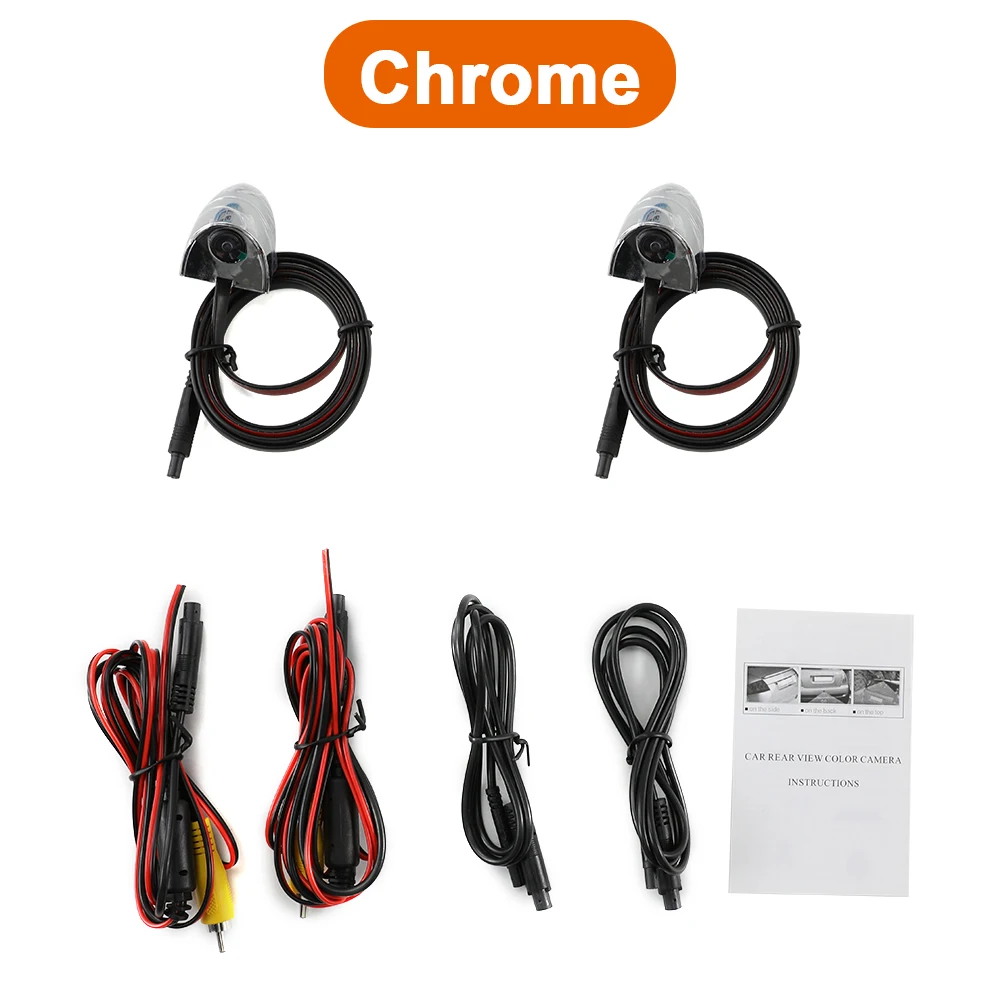

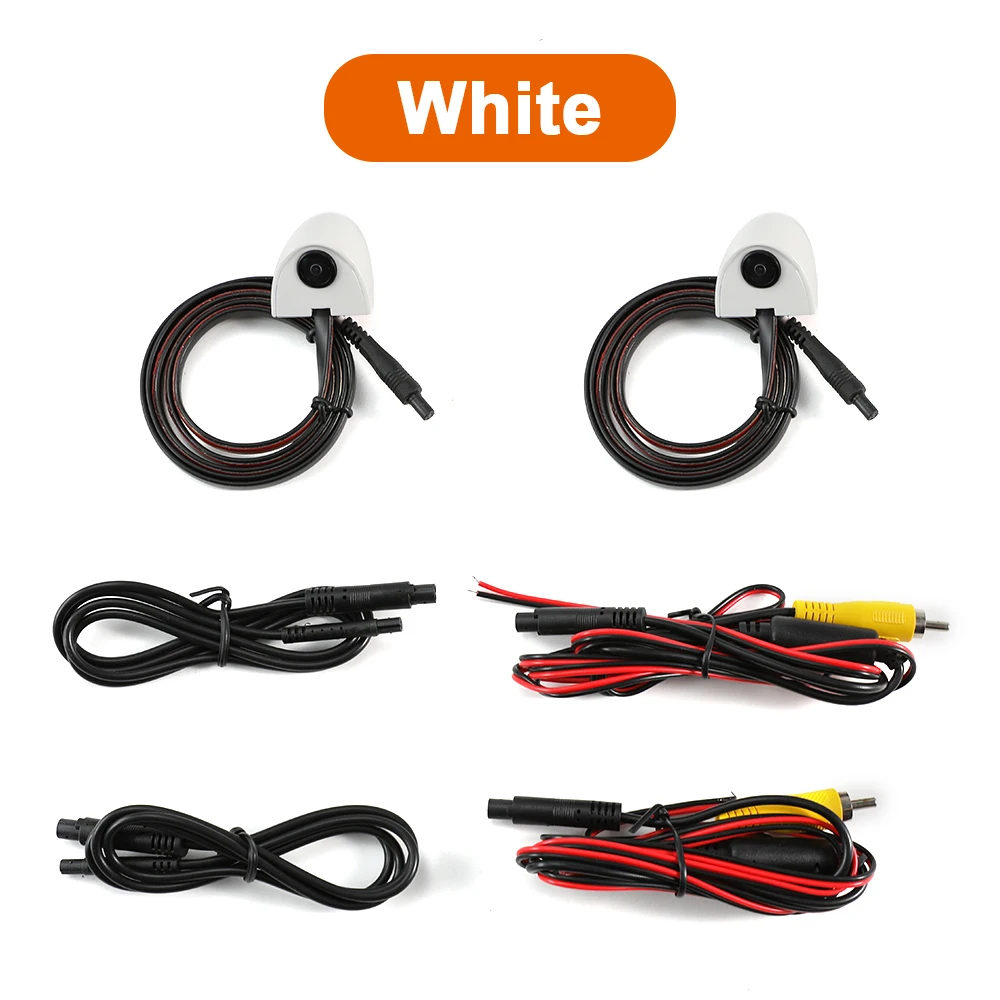

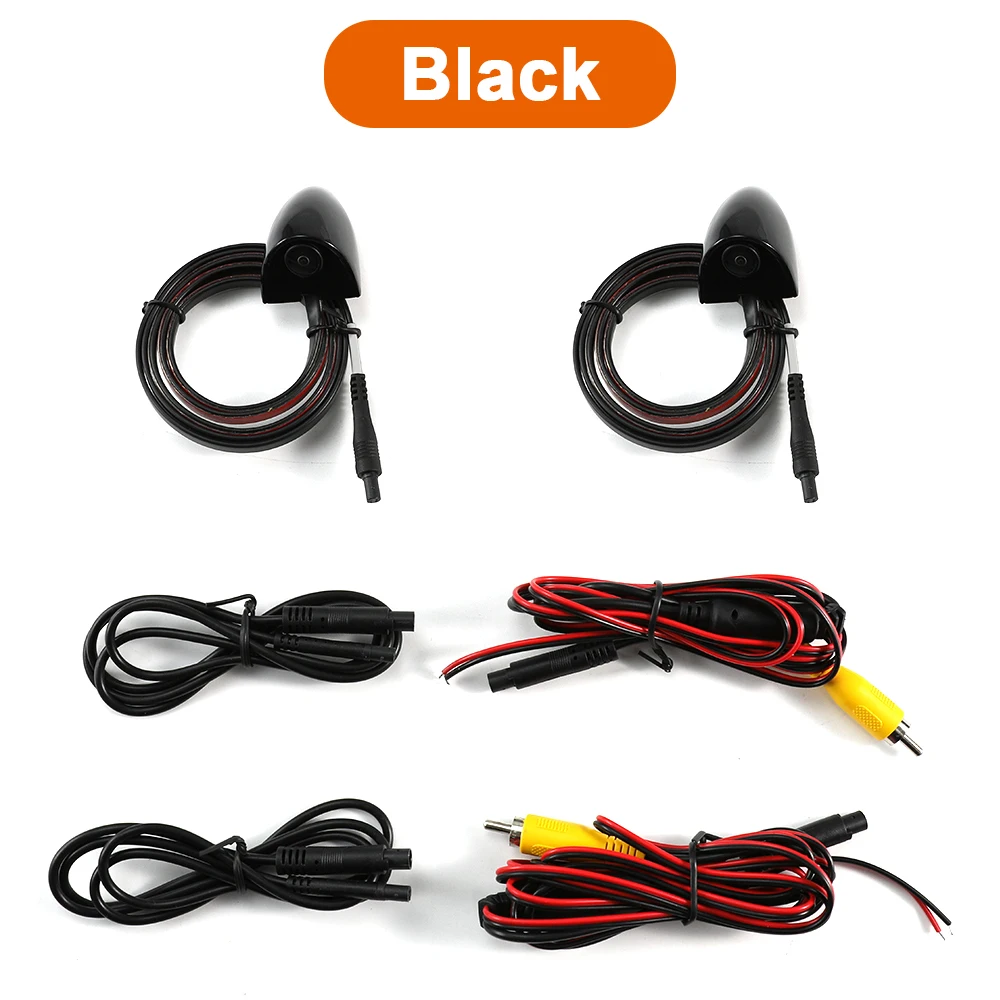

Package Includes:
â‘ Camerax2
â‘¡Extension Cables
â‘¢Instructions & Installation Accessories
Extra cable:Â
84cm ,Power cable: 175cm
13) Night Vision Color Camera
Package Includes:
â‘ Camerax2
â‘¡Extension Cables
â‘¢Instructions & Installation Accessories
Â
